Re: Dolomite Sprint (RNK 957W)

#166 Post by dollyman »

James467 wrote: Sun Mar 15, 2020 9:20 am
dollyman wrote: Sat Mar 14, 2020 10:49 pm That is looking great Murdo :D Are you going to mask off the rest of the garage? It would be a shame to get it dirty :lol:
You mention powder coating some of the running gear? I have heard somewhere that it tends to chip with normal road use? I dont know how true that is, but it might be worth looking at.
The ramp does look a good bit of kit, as you know i was a bit scepticle :wink: Keep the photo's coming really enjoy them :thumbsup:

Tony.
Powder coating nowadays is fine, there are modern coatings that are slightly more flexible designed specifically for car suspension systems.

Just make sure you don't coat any bolt or flange faces, anything that requires metal on metal contact.
That's good to know James :D I just remember reading about it somewhere? Knowing me it could have been years ago :shock: It's an age thing :lol:

Tony.
NOW A CLUB MEMBER 2017057 :bluewave:
oily66
TDC Member
Posts: 315
Joined: Wed Aug 24, 2011 8:09 pm
Location: West Yorks

Re: Dolomite Sprint (RNK 957W)

#167 Post by oily66 »

Regarding the fuel pipe seal that’s as best you get from the factory.
I ended up using a blind grommet, think it was a 25mm off the top of my head and I cannot find a picture.
The dum dum stuff you have there is the usual.
Last edited by oily66 on Mon Mar 16, 2020 4:48 pm, edited 1 time in total.
Trevor

75 Sprint in Magenta called GunGaDiN GGD944N
2017 Jaguar XE R-sport
User avatar
RSi
TDC Member
Posts: 648
Joined: Wed Aug 16, 2017 2:06 pm
Location: Isle of Lewis (Outer Hebrides)

Re: Dolomite Sprint (RNK 957W)

#168 Post by RSi »

I've noticed the chap that does the powder coating here plugs the bolt holes James. I don't think there's a better alternative for protecting components underneath the car, or is there?

It'll be a case of tidying up the "dum dum" then Trevor, did they come originally with a grommet, or was it left open to the elements?
Last edited by RSi on Mon Mar 16, 2020 2:59 pm, edited 1 time in total.
Triumph Dolomite Sprint (RNK 957W)

Automatic, porcelain white - 52,820, genuine mileage (warranted).

Built 26/6/1980, 3 previous owners (2 within the same family).

Supplied by Lavender Hill Garage Ltd, Enfield, London, by garage owner Jimmy Metcalfe on 30th September 1980 to Geoffrey Robinson, Enfield, London.

Club Membership No: 2017092
User avatar
RSi
TDC Member
Posts: 648
Joined: Wed Aug 16, 2017 2:06 pm
Location: Isle of Lewis (Outer Hebrides)

Re: Dolomite Sprint (RNK 957W)

#169 Post by RSi »

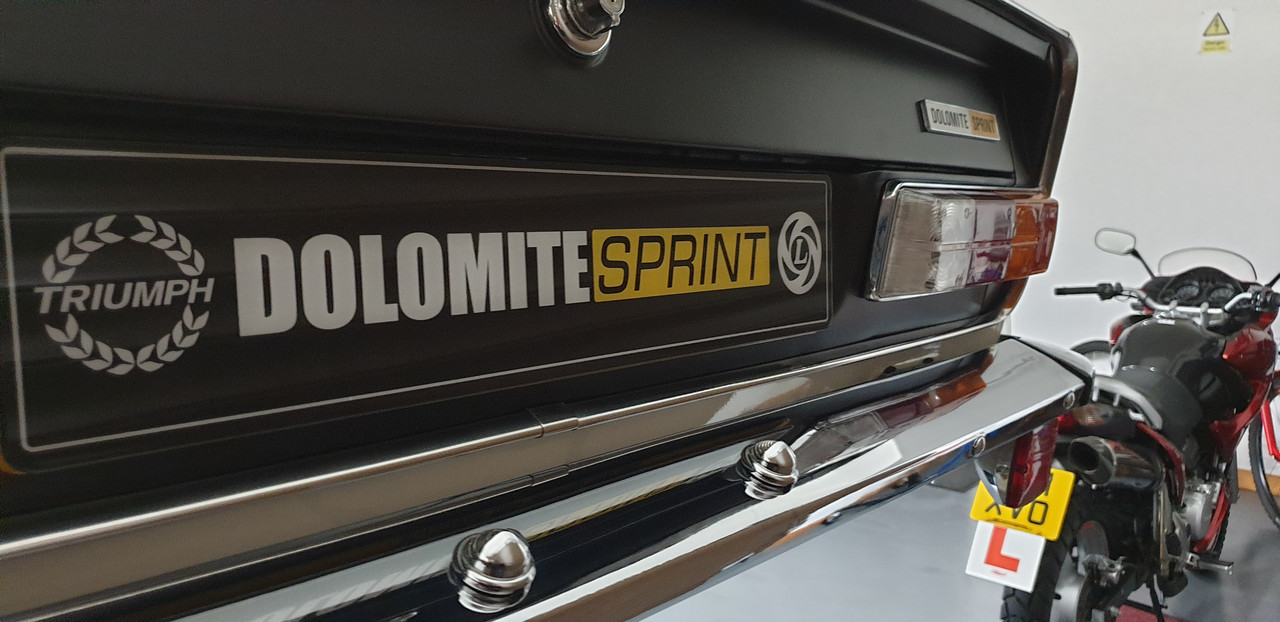

I thought these might be a nice touch for shows.


Triumph Dolomite Sprint (RNK 957W)

Automatic, porcelain white - 52,820, genuine mileage (warranted).

Built 26/6/1980, 3 previous owners (2 within the same family).

Supplied by Lavender Hill Garage Ltd, Enfield, London, by garage owner Jimmy Metcalfe on 30th September 1980 to Geoffrey Robinson, Enfield, London.

Club Membership No: 2017092
oily66
TDC Member
Posts: 315
Joined: Wed Aug 24, 2011 8:09 pm
Location: West Yorks

Re: Dolomite Sprint (RNK 957W)

#170 Post by oily66 »

The dum dum is standard
This is what I did


Those plates look the nuts
Trevor

75 Sprint in Magenta called GunGaDiN GGD944N
2017 Jaguar XE R-sport
User avatar
RSi
TDC Member
Posts: 648
Joined: Wed Aug 16, 2017 2:06 pm
Location: Isle of Lewis (Outer Hebrides)

Re: Dolomite Sprint (RNK 957W)

#171 Post by RSi »

oily66 wrote: Mon Mar 16, 2020 4:44 pm The dum dum is standard
This is what I did


Those plates look the nuts
That looks neat.

The dum dum was doing the job and kept the water out, so will trim it down so it looks acceptable, if it doesn't I'll go the grommet route, is the hole not oblong?
Triumph Dolomite Sprint (RNK 957W)

Automatic, porcelain white - 52,820, genuine mileage (warranted).

Built 26/6/1980, 3 previous owners (2 within the same family).

Supplied by Lavender Hill Garage Ltd, Enfield, London, by garage owner Jimmy Metcalfe on 30th September 1980 to Geoffrey Robinson, Enfield, London.

Club Membership No: 2017092
User avatar
James467
TDC Sprint Registrar
Posts: 1942
Joined: Wed Jul 04, 2007 12:27 pm
Location: Hampshire

Re: Dolomite Sprint (RNK 957W)

#172 Post by James467 »

You know dum dum is just plumbers mate!
dollyman
TDC Cheshire Area Organiser
Posts: 1410
Joined: Wed May 17, 2017 6:28 pm
Location: NANTWICH.

Re: Dolomite Sprint (RNK 957W)

#173 Post by dollyman »

https://www.ebay.co.uk/itm/Sugru-Origin ... 289ecfa37c
Have a look at this stuff Murdo, it's great stuff. 8)

Tony.
NOW A CLUB MEMBER 2017057 :bluewave:
Carledo
TDC Shropshire Area Organiser
Posts: 7253
Joined: Sun Aug 21, 2011 5:12 pm
Location: Highley, Shropshire

Re: Dolomite Sprint (RNK 957W)

#174 Post by Carledo »

Factory fit around the fuel tank outlet was a wonderfully hygroscopic chunk of sponge foam and a dollop of Dumdum!

Trevor's solution is a lot neater and massively more waterproof! I'd go with that!

My own take is more empirical, rather than trying to keep water out (which seems impossible with the way the bootlid and lamp seals leak), I ditch the foam or whatever it is strips berween the tank and boot floor, leave the main big grommet out and a hole around the pipe and drill an extra 25mm drain hole near as possible to the front (lowest) edge of the tank recess. Then a couple of good solid coats of Smoothrite on the inner boot floor surface! The idea being that any water that gets in, can get out again quickly, rather than hanging around to do damage. I don't expect you to use this approach, my car has been built from the outset to be a daily use car, it may well be put away wet (shock horror) or even get left out in the rain!

Steve
'73 2 door Toledo with Vauxhall Carlton 2.0 8v engine (The Carledo)
'78 Sprint Auto with Vauxhall Omega 2.2 16v engine (The Dolomega)
'72 Triumph 1500FWD in Slate Grey, Now with RWD and Carledo powertrain!

Maverick Triumph, Servicing, Repairs, Electrical, Recomissioning, MOT prep, Trackerjack brake fitting service.
Apprentice served Triumph Specialist for 50 years. PM for more info or quotes.
User avatar
RSi
TDC Member
Posts: 648
Joined: Wed Aug 16, 2017 2:06 pm
Location: Isle of Lewis (Outer Hebrides)

Re: Dolomite Sprint (RNK 957W)

#175 Post by RSi »

Carledo wrote: Wed Mar 18, 2020 7:17 pm Drill an extra 25mm drain hole near as possible to the front (lowest) edge of the tank recess.
Steve
Unthinkable Steve, I've had to take a brandy after that suggestion. Now if I could purchase an NOS hole I'd go with that no problem.

Hopefully the only water this will see is tap water with car shampoo, unless I get caught out, which is highly likely in the Hebrides.


There's a tiny hole there.
Last edited by RSi on Wed Mar 01, 2023 3:49 pm, edited 1 time in total.
Triumph Dolomite Sprint (RNK 957W)

Automatic, porcelain white - 52,820, genuine mileage (warranted).

Built 26/6/1980, 3 previous owners (2 within the same family).

Supplied by Lavender Hill Garage Ltd, Enfield, London, by garage owner Jimmy Metcalfe on 30th September 1980 to Geoffrey Robinson, Enfield, London.

Club Membership No: 2017092
Carledo
TDC Shropshire Area Organiser
Posts: 7253
Joined: Sun Aug 21, 2011 5:12 pm
Location: Highley, Shropshire

Re: Dolomite Sprint (RNK 957W)

#176 Post by Carledo »

A lot of Dolomites (I hesitate to say all) seem to have that 1/4" drain hole in the boot floor aft and left of the big grommet. TBH, it's too small and in the wrong place!

At first glance, it appears to be at the lowest point, but experience of huge puddles and rust patches has taught me otherwise!

I can't find my only remaining NOS hole, will a remanufactured one do? :twisted:

Steve
'73 2 door Toledo with Vauxhall Carlton 2.0 8v engine (The Carledo)
'78 Sprint Auto with Vauxhall Omega 2.2 16v engine (The Dolomega)
'72 Triumph 1500FWD in Slate Grey, Now with RWD and Carledo powertrain!

Maverick Triumph, Servicing, Repairs, Electrical, Recomissioning, MOT prep, Trackerjack brake fitting service.
Apprentice served Triumph Specialist for 50 years. PM for more info or quotes.
User avatar
geeksteve
TDC Member
Posts: 713
Joined: Mon Nov 07, 2011 9:57 am
Location: Dorset
Contact:

Re: Dolomite Sprint (RNK 957W)

#177 Post by geeksteve »

Leave a dash of salt in there and the drain hole will make itself automatically at the lowest point :lol:
oily66
TDC Member
Posts: 315
Joined: Wed Aug 24, 2011 8:09 pm
Location: West Yorks

Re: Dolomite Sprint (RNK 957W)

#178 Post by oily66 »

No not oblong, probably looks that way due to to curve of the panel.
Trevor

75 Sprint in Magenta called GunGaDiN GGD944N
2017 Jaguar XE R-sport
dollyman
TDC Cheshire Area Organiser
Posts: 1410
Joined: Wed May 17, 2017 6:28 pm
Location: NANTWICH.

Re: Dolomite Sprint (RNK 957W)

#179 Post by dollyman »

Talking of holes, i always used to drill a 1/8 hole in the lowest part of a silencer box when fitting new ones. A couple if the customers car was a "shopping car" it made them last 2 or 3 times longer just by letting the water out. :D

Tony.
NOW A CLUB MEMBER 2017057 :bluewave:
JPSPRINT
Guest contributor
Guest contributor
Posts: 98
Joined: Wed Sep 18, 2019 11:56 am
Location: Sydney, Australia.

Re: Dolomite Sprint (RNK 957W)

#180 Post by JPSPRINT »

RSi wrote: Mon Mar 16, 2020 2:58 pm I thought these might be a nice touch for shows.


I can't praise the work and photos on this thread enough, super effort Murdo !!!!
'75 Dolomite Sprint (Mimosa Yellow) - currently restoring back to life
