Dolomite wiring diagram. A different one.

[MIG Wielder]

I was talking to a colleague who was wondering why car wiring diagrams are always shown in a spidery format with components located in their relative positions on the car, rather than in an electronic circuit format with a positive supply rail, and a return 0V / Earth etc; with components arranged functionally between the supplies.

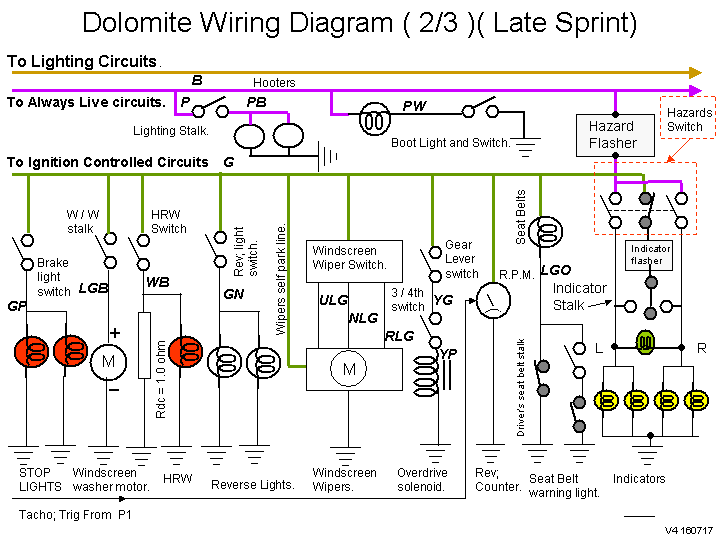

So I took a typical Sprint wiring diagram and put part of it as more of a circuit diagram.
It includes battery / charging / starting / ignition / fuses etc; so far.

Do you find this more useful than the Workshop manual diagram ?
This is now 3 pages of A4. Please let me know of any mods; / additions corrections etc;
Tony.

[Slowmo]

Yes, it's a good idea. Much more logical and easier to read (although I am into electronics). There is no reason at all why the physical position of the component is relevant in a wiring diagram - just complicates everything.

Some manuals for other vehicles I have had +ve at the top and chassis at the bottom as you have done but they are rare. Most are messy!

Peter

[soe8m]

The old cars have not so much wiring and drawing the components by shape and their location it is understandable for the non technical as most wiring diagrams were a part of the owners manual.

All newer diagrams are as you suggested. Vw/porsche started this way of drawing around 1975 and was followed by others.

Jeroen.

[tony g]

Thats great work Tony, nice to see it in that format. I'd like to see the rest if you wish to do so. Thanks.

Tony

[GTS290N]

That's so much easier to figure out! Thank you.

[oily66]

I'm just in the middle of disconnecting the whole loom and marking up as I go.
I have spent a lot of time in the back of the manual looking at the WD.
This is good at showing relationships between components but not so good at showing how it all operates together and is poorly marked with colour codes, well mine is.

This is great Tony, other side of the fuse please

[SprintMWU773V]

There's a case for both. I've been doing some work on my wiring, mostly fixing it in place at the front. I had several connectors and leads which I'd forgotten what they were for. Using the original style diagram it was easy to work out, though I think your version is easier to understand how something actually works.

[Carledo]

I think in the case of the Dolomite, your new style diagram is nice and clear, but is taking 4 pages to show what is easily understood in 1.

Mind you, long use has made me so familiar with Lucas colour codes that I don't NEED a wiring diagram to work on anything with Lucas codes _ especially anything with a Triumph badge!

I had to get wiring diagrams for Vauxhall Carlton when I did the engine swap on the Carledo. These ran to 10 pages in the Haynes manual and I had to scan them to the computer and then zoom in on areas to be able to read them. And it still took me most of a day to trace a handful of wires across several pages. I've not even BOTHERED to get a Haynes for the Omega, only time will tell if that was a mistake, but I hated the modern style diagram for the Carlton so much that I couldn't face trying to translate the (probably twice as bulky) Omega diagram.

Steve

[MIG Wielder]

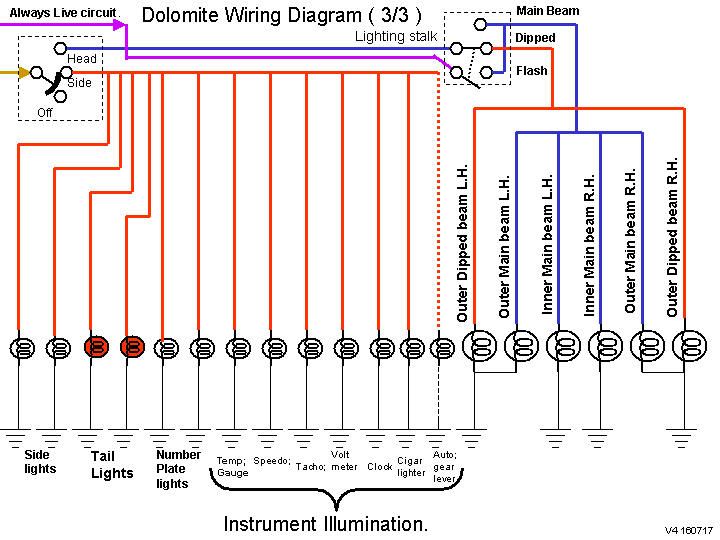

Updated with 3 sheets in .png format.

[GTS290N]

And saved to disc. Thanks

[oily66]

Cheers Tony

[tony g]

Me too, thanks Tony

Tony

And saved to disc. Thanks

[new to this]

Tony

thanks makes it clearer being bigger

[AlanH]

That's really good.

Reminds me of the London Underground map.

[Jon Tilson]

Very useful.

One slight advantage possessed by the original manual style is that they show the joining connectors. If you could manage that in the new style
and match the lucas colour coding you would have it all.

Some sort of cross reference to the joining connectors location really would be the icing on the cake. Eg a number by the connector break point

and a matching numbered location for the connector...

18 - 18 multiplug base of steering column.

Jonners
