fusebox upgrade

[triple tango]

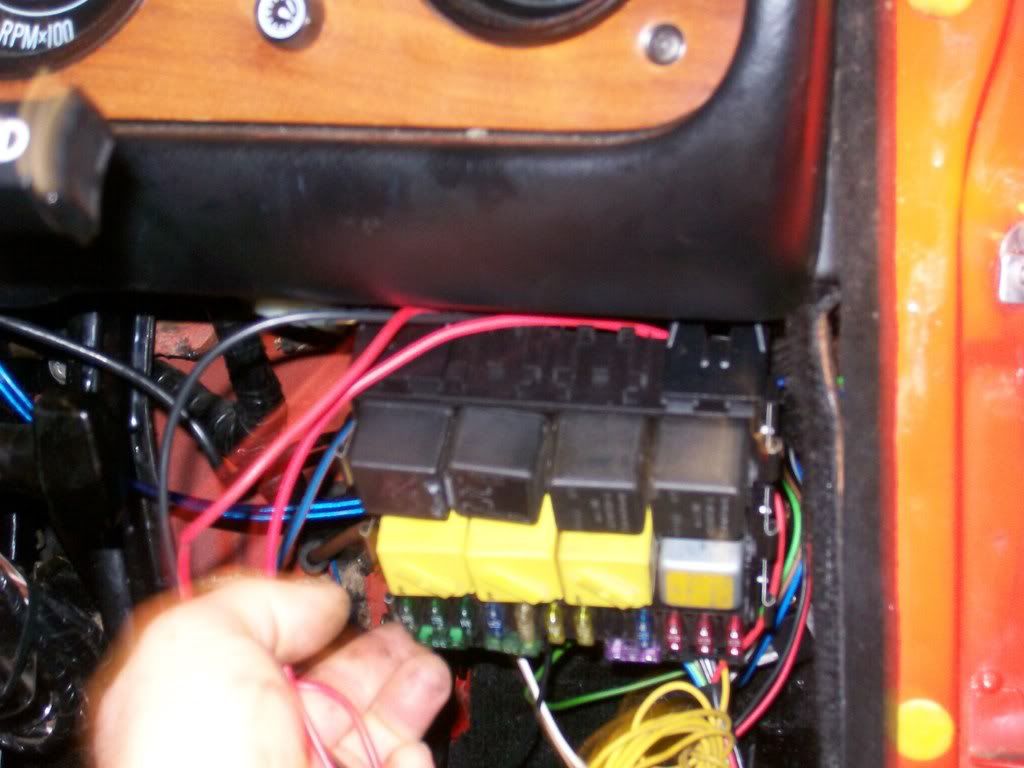

Thought you all may be interested in my fusebox upgrade.
I had to get rid of that ridiculous standard fuse"box". I have managed to do this with minimal chopping & altering to the original main loom.
The original wiring for the fuses has enough "give" to reach into the car, these 2 fuses are now in bottom left of new fuse box

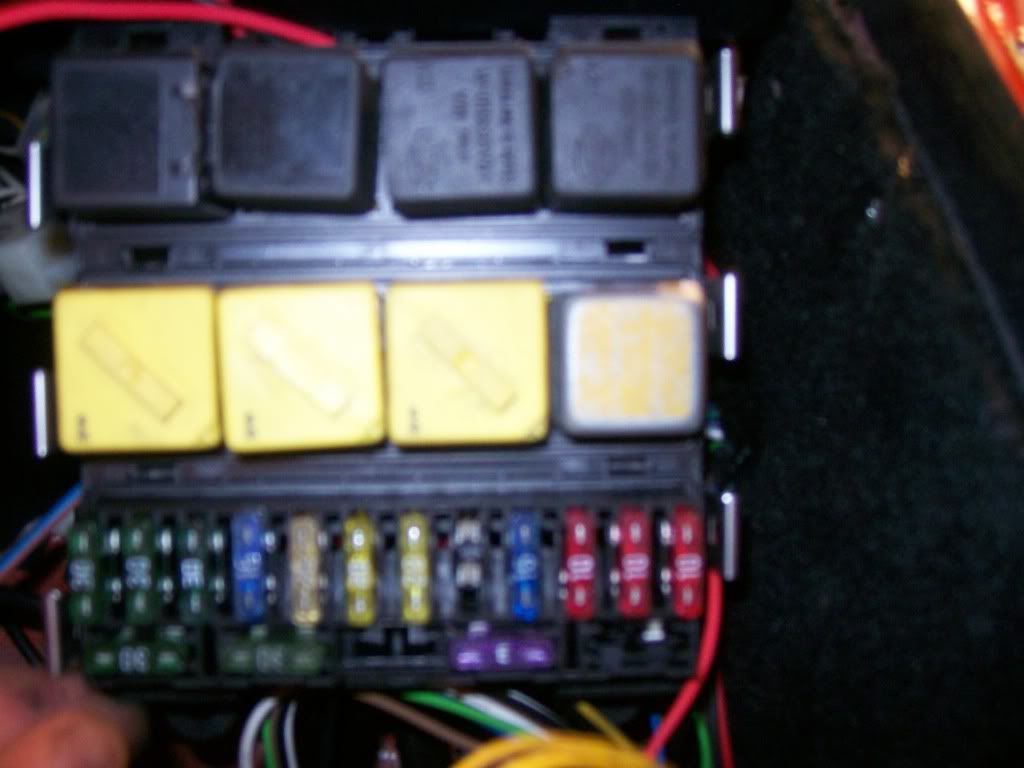

Next pic shows wiring to old fuses entering new box.

All the original loom & fuses now do is trip relays for individual items.

[JonyPI]

do i read that right? c/cocking?;)

[triple tango]

do i read that right? c/cocking?;)

Seems as if your mind is on somthing else!!

[Purplebargeken]

Strange, but I saw straight away that is was indeed locking. Great job there. I don't understand it at all but it looks sound

Ken

[2F45T4U]

I get dizzy by looking at stuff like that!

I've got my rear demister to re-wire and halogens to fit... I'm scared

[triple tango]

Nah, I really enjoy vehicle electrics, kind of relaxing.
I know that may seem odd!

[sprint95m]

Triplecustard, your excellent conversion work fitting an upgraded fusebox would make a good article for inclusion in Dolly Mixture, in my opinion.

[Dollyboy]

agreed, that is a top job

relaxing??? you really are a nutter. love it.

[triple tango]

well electrics are relaxing, I shut myself in the garage put the radio on & twiddle with my wires- very peacefull!

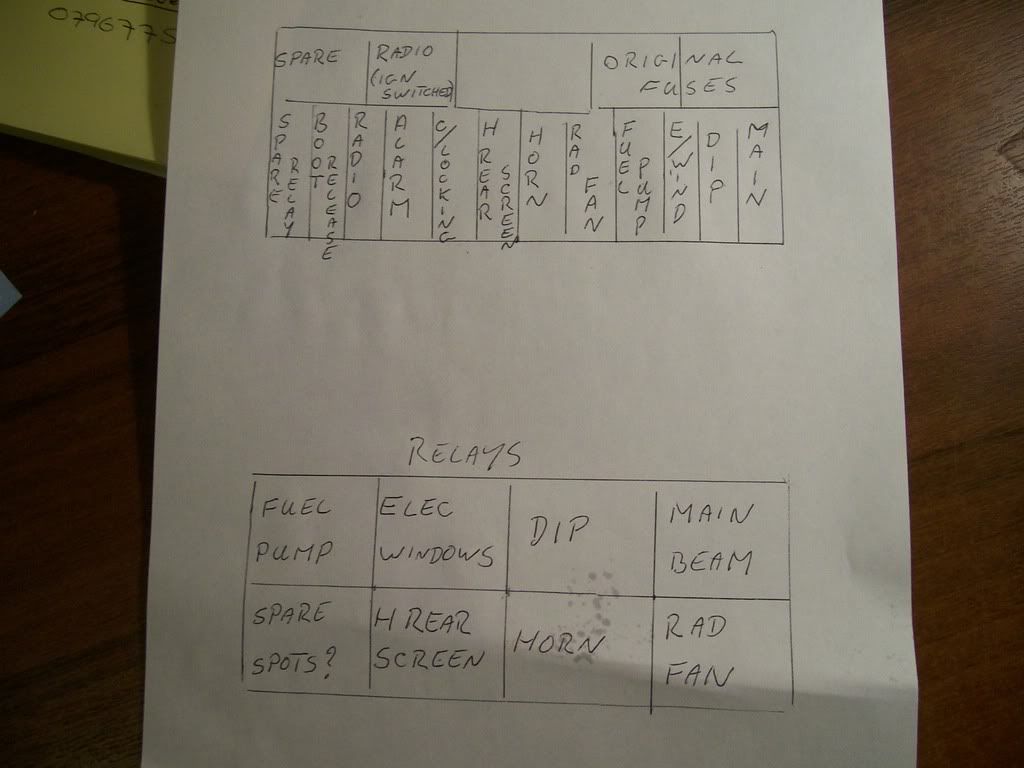

Since I posted first pics, the fuse I labeled "spare" is now side lights.

[newguy]

Well done i am planning a similar setup in the new sprint, as it has s##t 1850 electrics and the sprint electrics are terrible

Could be a bit tidier, in an enclosure or something?

[triple tango]

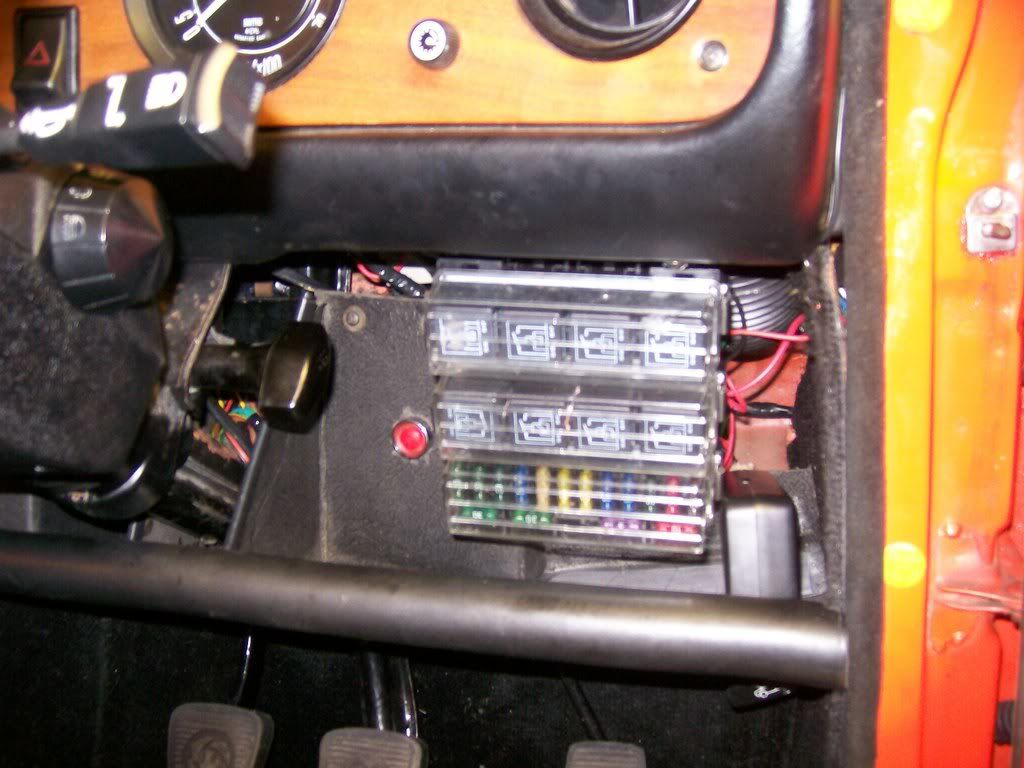

it has tranparent cover & sits up under dash, wiring is all hidden & tidy. Photos taken halfway through job with fusebox hanging from wires & supported by my hand! Dont worry finished job is definately not untidy!

[trackerjack]

Coo that looks like a proper job I have fitted relays on my headlamps to save frying the std switch, and have bought but not fitted a 6 row of sealed fuses to replace the standard box in the engine bay.

[newguy]

it has transparent cover & sits up under dash, wiring is all hidden & tidy. Photos taken halfway through job with fusebox hanging from wires & supported by my hand! Don't worry finished job is definitely not untidy!

Ahhh that sounds Sexy Love the sound of "transparent" = Awesome

[newguy]

Coo that looks like a proper job I have fitted relays on my headlamps to save frying the std switch, and have bought but not fitted a 6 row of sealed fuses to replace the standard box in the engine bay.

Yea i am going to Relay Everything, Lights, Fan, Horn Etc.

[triple tango]

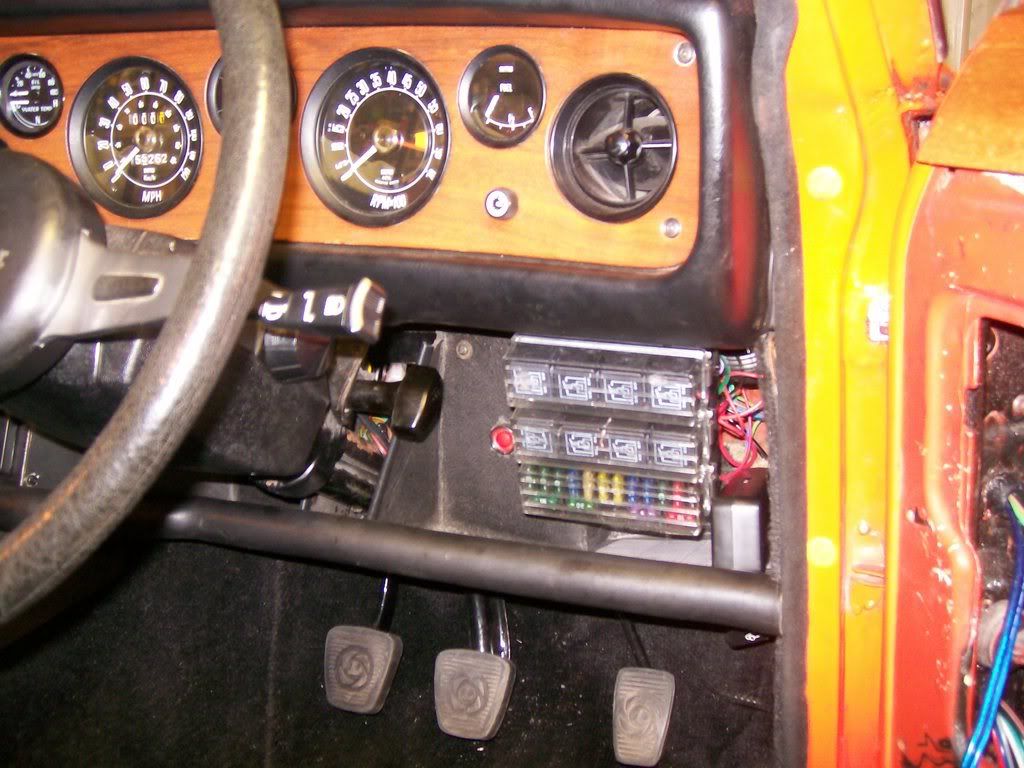

Finished at last!
