Mystery 1850 (?) part

[MIG Wielder]

Anybody know what this is please ?

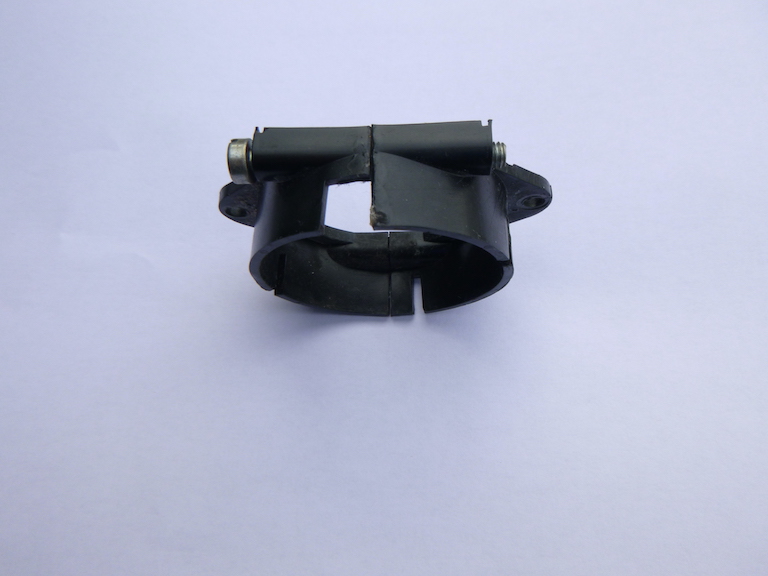

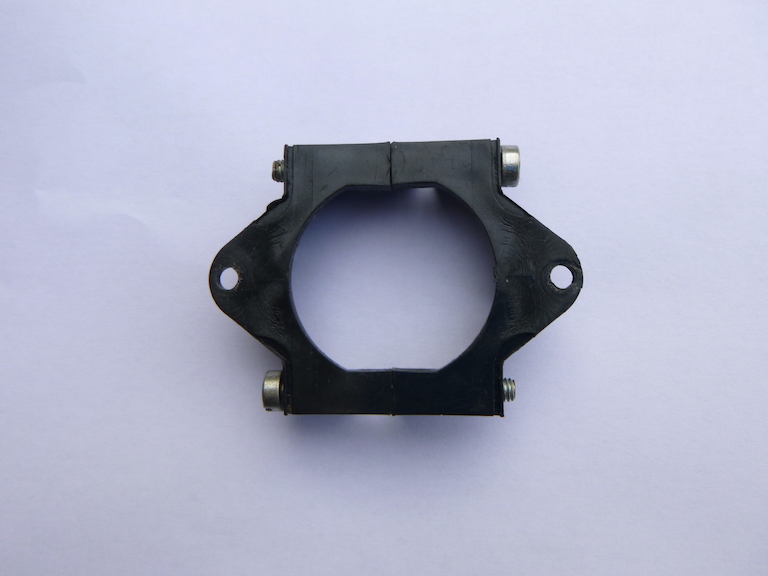

It is made of black ABS plastic . It has no maker's name or other ident; on it.

I think it is an 1850 Lumenition-style electronic chopper for their electronic ignition.
Unlike the current model this version appears to be made in 2 parts so it can be fitted without removing the distributor. It fits below the rotor arm on longer screws I reckon.
But ... it has 3 identical slots spaced at 90 degrees and the 4th one is much wider as if it has to know where pot 1 is.
Which makes me think it is not Lumenition but from a competitor brand.

Anybody know which one please ? There were a lot of them about in the 1970s.

Thanks very much,
Tony.

[Carledo]

Lumenition optronic choppers have always looked the same right from the first ones. I've been using them since their introduction circa 1976 as I worked at a Lucas agent who had exclusive rights when it was launched and for some years afterwards. Even then they were pricey, around a weeks wages for a kit, but I got a massive 50% staff discount!

So it's NOT Lumenition, but I agree it will serve a similar purpose, I can't think of any other use! but i've no idea of it's ancestry, never seen one like it!

I'd say that larger slot is not deliberate, but broken away!

Steve

[matt of the vivas]

Its Piranha / Newtronic.

[MIG Wielder]

Thank you all for your comments. It looks like I have to do some homework.

Cheers for now,
Tony.

[matt of the vivas]

No homework needed.
It is Piranha or Newtronic - Newtronic took over Piranha so the two are essentially the same.




Here it is, doing its thing on my 1850.
Unfortunately the extra wide slot is a defect, all the slots whould be the same width, so its going to be of limited use to anyone.
