Sprint rear brakes , info needed ASAP

#1 Post by simonhorton »

Hi All,
I'm putting the rear brakes back together
Is this the correct way around ?

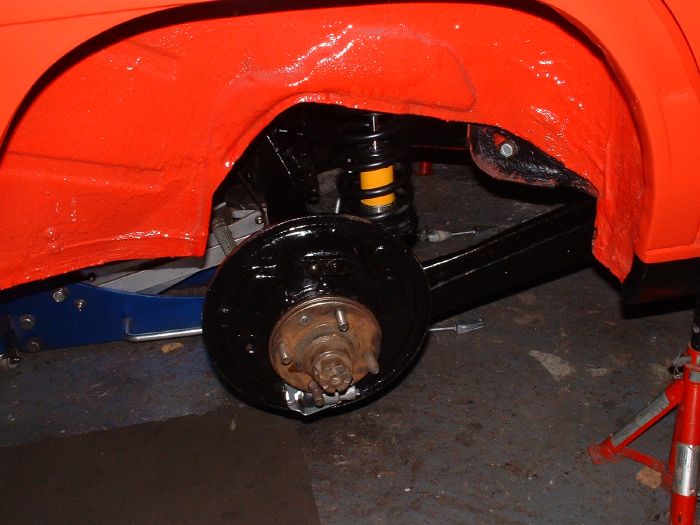

The pic is the left hand rear assembly

Is the self adjusting lever in the correct position , IE on outside of cylinder , or should it go on the inside

Many thanks
Attachments
Last edited by Toledo Man on Wed Jan 27, 2016 6:23 pm, edited 2 times in total.
Reason: Resized the photos.
Top
User avatar
SprintMWU773V
TDC Staffs Area Organiser
Posts: 5429
Joined: Wed Oct 18, 2006 2:08 pm
Location: The Old Asylum

Re: Sprint rear brakes , info needed ASAP

#2 Post by SprintMWU773V »

It all looks very wrong to me. Your back plate appears to be on the wrong way round and where's the half shaft?
Mark

1961 Chevrolet Corvair Greenbrier Sportswagon
1980 Dolomite Sprint project using brand new shell
2009 Mazda MX5 2.0 Sport
2018 Infiniti Q30
Top
User avatar
Mad Mart
TDC Member
Posts: 8532
Joined: Tue Oct 03, 2006 5:48 pm
Location: Winscombe, North Somerset, England
Contact:
Contact Mad Mart

Re: Sprint rear brakes , info needed ASAP

#3 Post by Mad Mart »

That confused me. Your pic is upside down.

Sprintless for the first time in 35+ years. :boggle2: ... Still Sprintless.

Engines, Gearboxes, Overdrives etc. rebuilt. PM me.


2012 Porsche Boxster 981 S


Top
User avatar
trackerjack
Guest contributor
Guest contributor
Posts: 4727
Joined: Fri Nov 23, 2007 11:33 pm
Location: hampshire

Re: Sprint rear brakes , info needed ASAP

#4 Post by trackerjack »

He might be an Aussie :lol:
track action maniac.

The lunatic is out................heres Jonny!
Top
simonhorton
TDC Member
Posts: 462
Joined: Thu Oct 12, 2006 6:40 pm

Re: Sprint rear brakes , info needed ASAP

#5 Post by simonhorton »

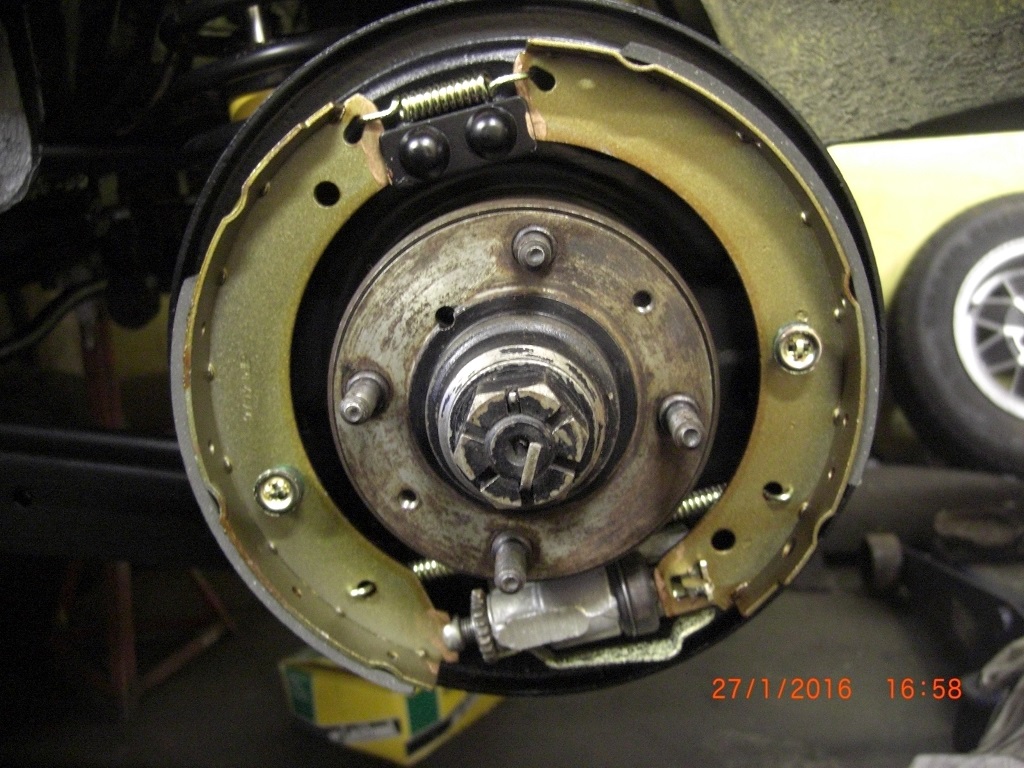

Better pics added now
Top
User avatar
Toledo Man
Guest contributor
Guest contributor
Posts: 7542
Joined: Tue Oct 03, 2006 5:52 pm
Location: Halifax, West Yorkshire
Contact:
Contact Toledo Man

Re: Sprint rear brakes , info needed ASAP

#6 Post by Toledo Man »

And I've resized them for you.
Toledo Man

West Yorkshire Area Organiser
Meetings take place on the first Wednesday of the month at 8.00pm at The Railway, 1 Birstall Lane, Drighlington, Bradford, BD11 1JJ

2003 Volvo XC90 D5 SE (PX53 OVZ - The daily driver)
2009 Mercedes-Benz W204 C200 CDI Sport (BJ58 NCV - The 2nd car)
1991 Toyota Celica GT (J481 ONB - a project car)
Former stable of SAY 414M (1974 Toledo), GRH 244D (1966 1300fwd), CDB 324L (1973 1500fwd), GGN 573J (1971 1500fwd), DCP 625S (1977 Dolomite 1300) & LCG 367N (1975 Dolomite Sprint), NYE 751L (1972 Dolomite 1850 auto) plus 5 Acclaims and that's just the Triumphs!

Check my blog at http://triumphtoledo.blogspot.com
My YouTube Channel with a bit of Dolomite content.

"There is only one way to avoid criticsm: Do nothing, say nothing and BE nothing." Aristotle
Top
User avatar
SprintMWU773V
TDC Staffs Area Organiser
Posts: 5429
Joined: Wed Oct 18, 2006 2:08 pm
Location: The Old Asylum

Re: Sprint rear brakes , info needed ASAP

#7 Post by SprintMWU773V »

Makes much more sense with those new pictures!
Mark

1961 Chevrolet Corvair Greenbrier Sportswagon
1980 Dolomite Sprint project using brand new shell
2009 Mazda MX5 2.0 Sport
2018 Infiniti Q30
Top
Jon Tilson
Guest contributor
Guest contributor
Posts: 11179
Joined: Tue Oct 03, 2006 9:45 pm
Location: Middlesex

Re: Sprint rear brakes , info needed ASAP

#8 Post by Jon Tilson »

2 crucial points...

The toothed adjuster wheels are threaded differently for each side. The lever moves the toothed wheel as the handbrake is applied in such a way that the threaded bit moves the shoe outwards. The lever will then click over the wheel when the shoe reaches the drum.

The other thing is there is a small H shaped shim that goes in the square hole in the shoe that the lever
presses against. If this is missing the lever moves too far and cant apply enough pressure for the
handbrake to be effective.

Jonners
Note from Admin: sadly Jon passed away in February 2018 but his humour and wealth of knowledge will be fondly remembered by all. RIP Jonners.
Top
User avatar
James467
TDC Sprint Registrar
Posts: 1942
Joined: Wed Jul 04, 2007 12:27 pm
Location: Hampshire

Re: Sprint rear brakes , info needed ASAP

#9 Post by James467 »

Here you go, tilt your head to the right because the axle is rotated!

Top
simonhorton
TDC Member
Posts: 462
Joined: Thu Oct 12, 2006 6:40 pm

Re: Sprint rear brakes , info needed ASAP

#10 Post by simonhorton »

Thanks again for the info

So are my brakes fitted correctly

Lever ratchet on outside of cylinder ?
Top
User avatar
James467
TDC Sprint Registrar
Posts: 1942
Joined: Wed Jul 04, 2007 12:27 pm
Location: Hampshire

Re: Sprint rear brakes , info needed ASAP

#11 Post by James467 »

Looks OK to me Simon.
Top
simonhorton
TDC Member
Posts: 462
Joined: Thu Oct 12, 2006 6:40 pm

Re: Sprint rear brakes , info needed ASAP

#12 Post by simonhorton »

Thank you James

So to confirm
ratchet lever on outside of cylinder ( closest to drum )
And wheel cylinder / handbrake lever roughly between 5 and 7 o'clock
IE - at bottom of backplate

Thank you
Simon
Top
User avatar
James467
TDC Sprint Registrar
Posts: 1942
Joined: Wed Jul 04, 2007 12:27 pm
Location: Hampshire

Re: Sprint rear brakes , info needed ASAP

#13 Post by James467 »

Yes, unless mine is set up wrong! :D

Here's a better view for you.

This is the passenger (NS) side.


and from the manual

Top
simonhorton
TDC Member
Posts: 462
Joined: Thu Oct 12, 2006 6:40 pm

Re: Sprint rear brakes , info needed ASAP

#14 Post by simonhorton »

Thanks again James
Your a star

Simon
Top
Jon Tilson
Guest contributor
Guest contributor
Posts: 11179
Joined: Tue Oct 03, 2006 9:45 pm
Location: Middlesex

Re: Sprint rear brakes , info needed ASAP

#15 Post by Jon Tilson »

The lever should be in the resting position towards the backplate, not towards the drum. As the handbrake lever
moves it has to turn the toothed wheel. If its resting position is toward the drum, as the lever is pulled it will miss the toothed
wheel.

James picture has it right, and shows the shim.

Jonners
Note from Admin: sadly Jon passed away in February 2018 but his humour and wealth of knowledge will be fondly remembered by all. RIP Jonners.
